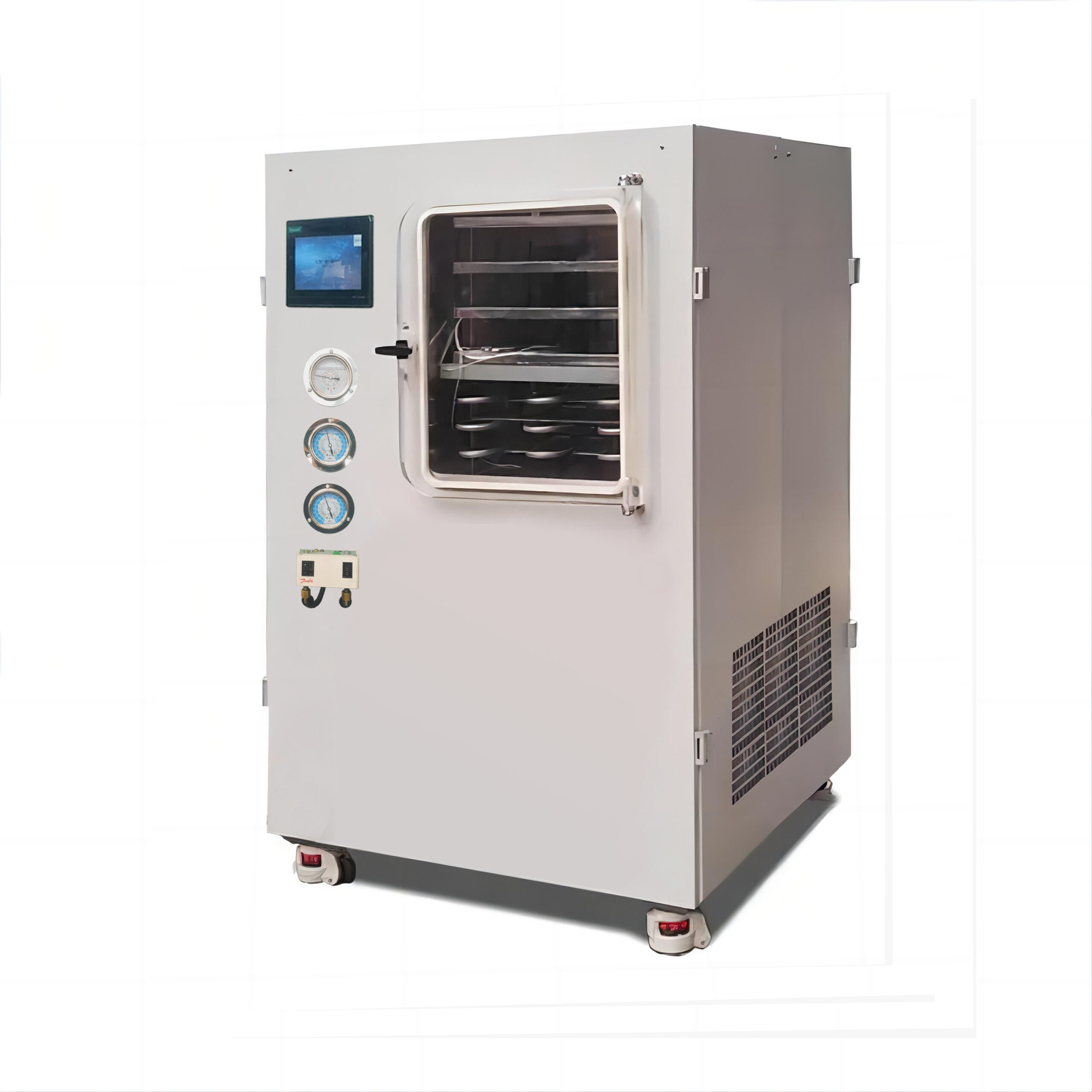

Main Feature:
1. Pre-freezing and drying are completed in situ, and the freeze-drying process is automated and easy to operate.
2. There is a circulating medium in the plate layer, the temperature can be adjusted, the temperature difference is 1℃, and the cooling and heating effect is more uniform.
3. Touch screen operation, PLC control system, real-time monitoring of equipment operation.
4. Can be connected to a computer for remote control and storage of freeze-drying curves.
5. Integral design, easy to transport and install, saving space.
Basic Description:
| BASE | Technical parameters /Specification |
| Effective trays square | 0.5㎡ |
| Material Capacity kg/batch | 5-10kg/batch,Depending on specific products and processes |
| Equipment dimensions（L*W*H | Square,1400*1100*2000mm |
| Trays dimension | 450*560*30mm(according to the shelf,can be design and change) |
| Nr Trays | 2pcs(if dimension change,it will change) |
| Installed Power KW | 7KW,but will not running all machines all the time |
| Energy Consumption Kw/hr | when working,use only about 3-5KW /h.Depend on what product and process |
| Power Voltage | 380V/50HZ |
| Colling way | Air cooling |
